Dodge Ram Steering Gear Box Stabilizer Dodge Van



Does your Dodge Ram truck or van have road wander and/or sloppy steering???

Typically these problems are not enough to put you in the ditch, but enough to be very annoying and to make you look like a DUI candidate.

This product is designed to solve the "very common" steering and handling problem found on Dodge Ram trucks/van.

1) This is done by adding an additional bearing to the bottom of the steering box sector shaft (opposite of the pitman arm).

 Which eliminates: steering gear box play (slop at the wheel causing wander or worse the "death wobble").

This will also prevent a newly installed gear box from getting this problem.

 2) And by adding a cross member at the point where the gear box is mounted. So by tying the frame rails together it eliminates all frame flex. (This problem of frame flex is especially made worse when larger tires are used on your Dodge truck).

 Frame flex causes your steering to be sluggish or slow in turning. This kit takes care of that problem and tightens it right up.

1994 - 2002
Click to enlarge



2003-201503 - 08
Click to enlarge

In other words, this takes the slop out of your steering!!

Made from one solid piece of steel !!!

Very Heavy Duty Bracket (made of 1/4" thick steel)

Powder-Coated Black finish!!

CNC machine formed.

Features:

-Eliminate steering box play

-Eliminate frame flex

-Reduces steering wander

-Does not affect your alignment

-No drilling or welding

-All mounting hardware is included

-Easy to follow instructions with pictures.

-Designed for EASY, bolt-in installation (less than ½ hour)

-Can easily be installed right from your driveway or garage.

-Will work with "any" leveling or lift kit.

“MADE IN THE U.S.A.”

To purchase, click the "Buy Now" button next to the version of the truck you have.

WE ONLY SHIP INSIDE THE USA.

Shipping/Handling cost is $20 for each kit. Anywhere in the USA.


Click to enlarge



Dodge Van 1994-2008Dodge Van
Click to enlarge

2WD 1994-2002
1500 (94-01) - ALL
2500 (94-02) - ALL
3500 (94-02)
FOR THE "3500 ONLY" THERE ARE 2 VERSIONS

1) If you have an independent front suspension you would order this kit

2) If you have a straight front axle you would need to order the 4WD kit below instead



2WD 1994-2002

$120.00

4WD 1994-2002
1500 (94-01)
2500, 3500 (94-02)

On the 1500 series trucks after 2001, Dodge went to rack & pinion steering which will not work with these stabilizers

4WD 1994-2002

$120.00

4x4 2003-2008
1500 (2006-08) "Mega Cab" only.
2500, 3500 (03-08)

4WD 2003-2008

$120.00

4x4 2003-2008 Upgraded
2500, 3500 (03-08)

This kit is for those who have upgraded to the factory 2009+ gearbox

If you are unsure what you have, measure your pitman arm nut.
03-08 = 1 5/16"
09+ = 1 7/8"

4WD 2009+ Upgrade

$120.00

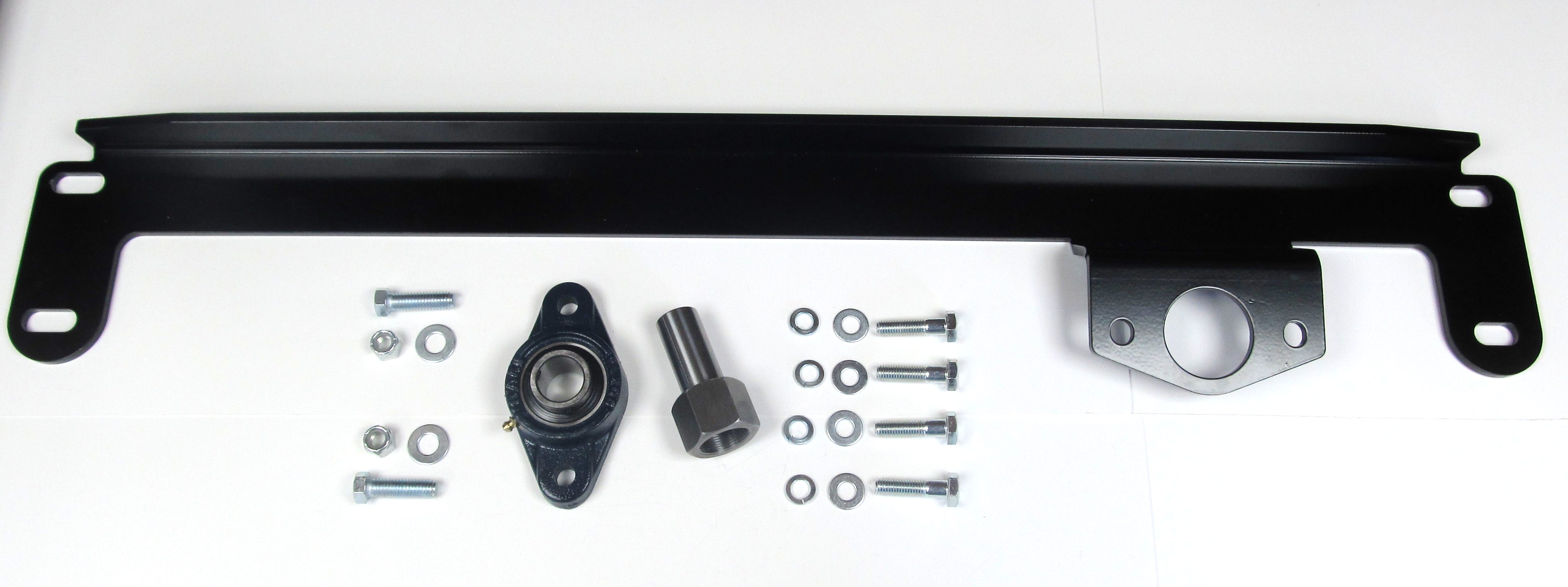

4WD 2009-2015
2500, 3500 SERIES
4WD 2009-2015

$120.00

Dodge Van
1994-2008

1500 - All
2500 - All
3500 - All

Will work with all conversion vans and RV's with Van cab's.

Dodge Van

$120.00





Our kits are always in stock and ready to ship.

We "only" ship in the U.S.A.

THIS COMES WITH A 100% MONEY BACK, SATISFACTION GUARANTEE!!

If you are not satisfied with this kit for "ANY" reason, you can return it back to us for a 100%
refund of your money.



Big D Off Road, LLC
4177 82nd St.
Byron Center, MI, 49315
Any Questions? (616) 299-0261, Don

Email: bigdoffroad@gmail.com
